MatplotlibChart

Displays a Matplotlib chart.

To display a Matplotlib figure with a built-in toolbar UI, use MatplotlibChartWithToolbar.

Warning

This control requires the matplotlib Python package to be installed.

See this installation guide for more information.

Inherits: GestureDetector

Properties

• figure(Figure) –

  Matplotlib figure to draw - an instance of

Events

• on_message(EventHandler[MatplotlibChartMessageEvent] | None) –

  The event is triggered on figure message update.

• on_toolbar_buttons_update(EventHandler[MatplotlibChartToolbarButtonsUpdateEvent] | None) –

  Triggers when toolbar buttons status is updated.

Methods

• back –

  Goes back to the previous view.

• download –

  Downloads the current figure in the specified format.

• forward –

  Goes forward to the next view.

• home –

  Resets the view to the original state.

• pan –

  Activates the pan tool.

• send_binary –

  Sends a binary message to the front end.

• send_json –

  Sends a JSON message to the front end.

• send_message –

  Sends a message to the figure's canvas manager.

• zoom –

  Activates the zoom tool.

Examples

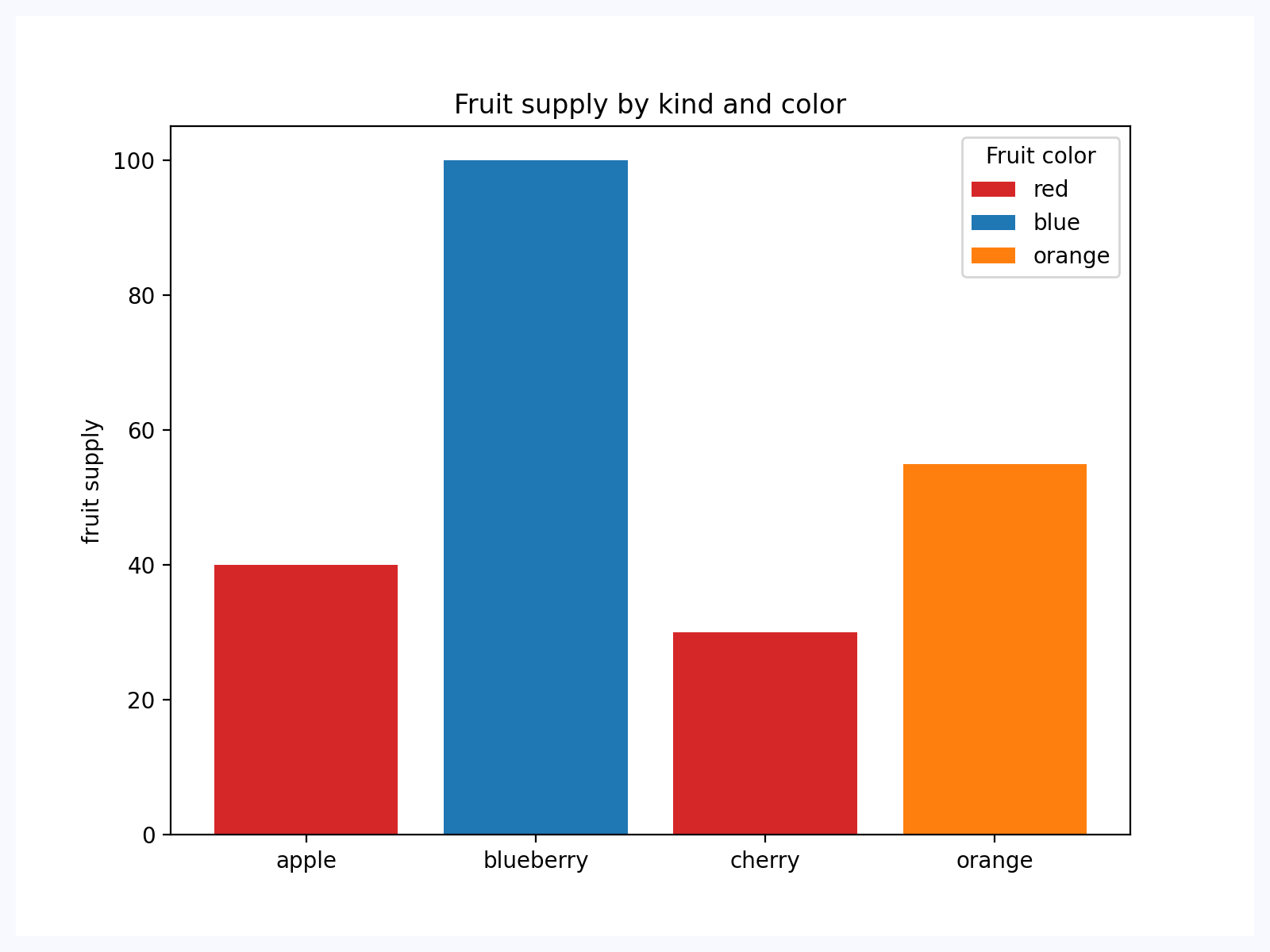

Bar chart

Based on an official Matplotlib example.

import matplotlib.pyplot as plt

import flet as ft
import flet_charts as fch


def main(page: ft.Page):
    fig, ax = plt.subplots()

    fruits = ["apple", "blueberry", "cherry", "orange"]
    counts = [40, 100, 30, 55]
    bar_labels = ["red", "blue", "_red", "orange"]
    bar_colors = ["tab:red", "tab:blue", "tab:red", "tab:orange"]

    ax.bar(fruits, counts, label=bar_labels, color=bar_colors)

    ax.set_ylabel("fruit supply")
    ax.set_title("Fruit supply by kind and color")
    ax.legend(title="Fruit color")

    page.add(fch.MatplotlibChart(figure=fig, expand=True))


if __name__ == "__main__":
    ft.run(main)

Properties

figure class-attribute instance-attribute

figure: Figure = field(metadata={'skip': True})

Matplotlib figure to draw - an instance of matplotlib.figure.Figure.

Events

on_message class-attribute instance-attribute

on_message: (
    EventHandler[MatplotlibChartMessageEvent] | None
) = None

The event is triggered on figure message update.

on_toolbar_buttons_update class-attribute instance-attribute

on_toolbar_buttons_update: (
    EventHandler[MatplotlibChartToolbarButtonsUpdateEvent]
    | None
) = None

Triggers when toolbar buttons status is updated.

Methods

back

back()

Goes back to the previous view.

download

download(format) -> bytes

Downloads the current figure in the specified format. Args: format (str): The format to download the figure in (e.g., 'png', 'jpg', 'svg', etc.). Returns: bytes: The figure image in the specified format as a byte array.

forward

forward()

Goes forward to the next view.

home

home()

Resets the view to the original state.

pan

pan()

Activates the pan tool.

send_binary

send_binary(blob)

Sends a binary message to the front end.

send_json

send_json(content)

Sends a JSON message to the front end.

send_message

send_message(message)

Sends a message to the figure's canvas manager.

zoom

zoom()

Activates the zoom tool.
